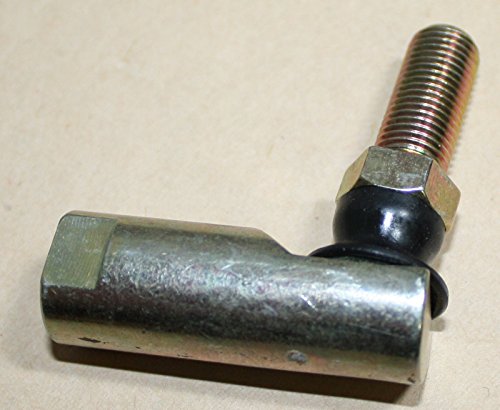

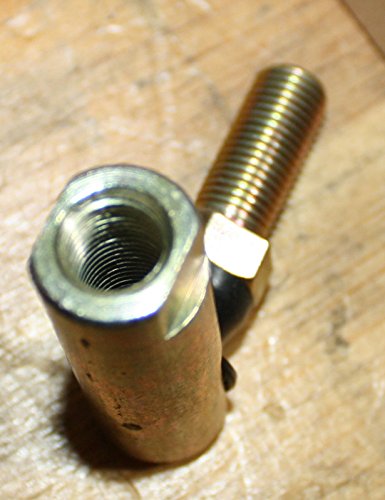

This is a Quantity of: 2Part # 3040-01-277-5600Ball Joint / Tie Rod End Specifications: Ball End Connection Thread Provision Threaded Ball End Thread Location External Ball End Thread Direction Right Socket End Connection Thread Provision Threaded Socket End Thread Location Internal Socket End Thread Direction Right Ball End Thread Size and Series/Type Designator 3/8-24 unf Socket End Thread Size and Series/Type Designator 3/8-24 unf Special Features Nonadjustable spring not included Height 0.875 inches nominal III Material Steel Style Designator Single, right angle, tapered endReplaces: ARIENS 00336900 AYP 109850X Bobcat 108078 CUB CADET 406304R1 CUB CADET 723-3000 CUB CADET 923-3000 EXMARK 373077 EXMARK 1-373077 GRASSHOPPER 265615 Gravely 21084 GRAVELY 021084 Gravely 2917100 GRAVELY 02917100 HUSQVARNA 532109850 HMMWV / Humvee / Hummer 6058K28 MTD 723-0156 MTD 723-3018 MTD 923-0156 MTD 923-3018 MURRAY 21031 SIMPLICITY 1669567 SIMPLICITY 1669567SM NOMA 21275 SCAG 48118 SNAPPER 10745 SNAPPER 79813 Snapper 1-0745 Snapper / Kees 7010745 Snapper / Kees 7010745YP TORO 112-0306
- Size: 3/8” Male & Female Ball joint
- For Use with: Ariens, AYP, Bobcat, Cub Cadet, Exmark, Husqvarna, HMMWV, Humvee
- As Well As: MTD, Murray, Simplicity, Snapper, NOMA, Scag, Kees, And Toro Applications
